CONCRETE BATHCHıNG PLANTS

Mobıle Concrete Batchıng Plants

UMMAN mobile concrete plants, which are preferred by our customers who want a shorter and faster solution than stationary concrete plants, are frequently mentioned in the market with their easy transport, immediate installation and low operating costs. Our mobile concrete plants, which produce 30 m³ and 120 m³ concrete per hour, have become the indispensable plants of many projects with the rapid mobilization of the world, frequent displacement of the construction sites, and the power and quality of time.It is one of the most preferred types of plants due to the low transportation costs, the low residential concrete required for plant installation and the commissioning in a short time. In short-term projects, mobile concrete plants are used in places where the installation area is limited, so that transportation can be done with a single tow truck.Umman Concrete Machine Mobile Plants produce 100% of the mixers themselves. Umman Concrete Machine produces mixers according to the design that can operate at full capacity in all kinds of climates.

Mobile Concrete Plant Highlights

STRONG AND DURABLE CHASSIS
HIGH QUALITY COMPONENTS
WORLD STANDARDS DESIGN
QUICK INSTALLATION
HIGH PERFORMANCE
TWIN SHAFT MIXER

Wide Main Chassis

The service platforms in the main chassis are among the best service platforms on the market. The control cabinet, which provides faster solution to different malfunctions of the operator, is mounted on the chassis.

High Weighing Accuracy

Heavy Main Chassis: Heavy main chassis minimizes the vibrations occurring during normal operation coming from the loading process, belt operation and mixing. Less vibration not only increases the accuracy but also increases the weighing speed which contributes to overall capacity.

Separate Weighing Hoppers: On all UMMAN concrete mixing plants weighing hoppers for cement, water, additives and other materials are separated from the mixer frame and are installed on a separate chassis to minimize vibrations. Installing these directly on the mixer frame transfers the vibrations coming from the mixer to the scales. It affects the weighing process which becomes less accurate and requires more time to finish. Both accuracy and speed are negatively affected.

Multi-Loadcell Design: Cement and water scales are equipped with 2 loadcells to optimize the load distribution and to maximize the accuracy. On the other hand, cardan connections allow free movement and prevent the loadcell and other connection from breakdowns. UMMAN never installs weighing hoppers on mixers.

Double Rope Skip Hoist System(WS)

All UMMAN skip hoist systems are designed with two separated ropes and a flexible connection to the skip. This application increases the lifetime of the ropes, reduces the risks of failures and allows extra safety for working personnel.

Skip Hoist Safety System(WS)

All UMMAN skip hoist systems are equipped with rope tension control mechanisms. The switch triggers an alarm if the rope is not tense enough or one of the ropes fails. This mechanism prevents skip fall and allows safer overall operation.

Independent Aggregate Discharge Gates

Each compartment of the aggregate bin of MB-30WS concrete plant is equipped with two pneumatically controlled discharge gates. This ensures fast aggregate load onto the weighing belt and precise dosing/jogging for maximum accuracy.

Completely Pre-Wired And Tested At The Factory

Almost no cable work is required on site since all the equipment is pre-wired at UMMAN factory to minimize the installation time on site. All the mechanical and electrical parts are tested for any possible faults to ensure the quality and reliability.

High Quality Components

We offer only premium parts from global well-known brands with our concrete batch plants. Most of the equipment can easily be found on global markets. This ensures long-term reliable continuous operation with minimum possibilities of break-downs.

Mobıle Concrete Batchıng plant models

UMC 30 Mobile Concrete Plant, which is the starting model of UMMAN mobile concrete plants in terms of capacity, is equipped with 750/500 l pan mixer or 750/500 l single shaft mixer and has 30 m³ / h compacted concrete production capacity.
UMC 30 Mobile Concrete Plant, which is designed on a mono block chassis that can be transported by pulling all equipment with axles and wheels, offers the following advantages to its users:

– Quick and easy installation (only 1 day)
– Transport advantage (the main unit can be shipped with a single truck tow truck)
– Possibility of installation in restricted area thanks to its special design
– Quick and easy displacement
– Low basic cost (installation on a flat floor)
– Minimum concrete transportation cost and minimum impact on the environment with the possibility of installation at the site
– Easy maintenance and low operating costs
– High production performance with optimized operation

0.5 m³ TWİN Shaft Mixer

Combining its experience with its quality, Umman Concrete Machine manufactures long-lasting, durable, 100% homogeneous and optional concrete types in concrete mixers.

Technıcıal Specıfıcatıons

SPECIFICATIONS	UNIT	VALUE
Plant Capacity	m³/h	30
Mixer Specifications
MixerCapacity	m³/h	0.5
DryFillingCapacity	Litre	750
CompactedConcrete	Litre	500
Motor Power	kW	22
Weighing Hopper Capacitys
Agregate Weighing Capacity	kg	1500
Cement Weighing Capacity	kg	300
Water Weighing Capacity	Litre	200
Water Requirement	Ton/h	6
Addivites Weighing Capacity	Litre	10
Additive Pump Motor Power	Litre	0.75
Agregate Bin
Agregate Compartment	Adet	4
Compartment Capacity	m³	7-10
Total	m³	28-40
Aggregate Weighing Band
Length	mm	2500
Motor Power	kW	7,5
Cement Screw Conveyor
Diameter	mm	193
Length	mm	3000
Motor Power	kW	7,5

It is the most preferred model of UMMAN mobile power plant series in capacity. In addition to the 1500/1000 l pan, planetary or twin shaft mixer options, the UMC60 Mobile Concrete Plant, whose mobility reaches the highest level with its integrated cement silo with an integrated 36 tons capacity, has a compacted concrete production capacity of 60 m3 /h.

UMMAN UMC 60 mobile concrete plants designed on mono block chassis that can be pulled and transported with axles and wheels offer the following advantages to their users:

1 m³ TWİN Shaft Mixer

Combining its experience with its quality, Umman Concrete Machine manufactures long-lasting, durable, 100% homogeneous and optional concrete types in concrete mixers.

Technıcıal Specıfıcatıons

SPECIFICATIONS	UNIT	VALUE
Plant Capacity	m³/h	60
Mixer Specifications
MixerCapacity	m³/h	1
DryFillingCapacity	Litre	1500
CompactedConcrete	Litre	1000
Motor Power	kW	37
Weighing Hopper Capacitys
Agregate Weighing Capacity	kg	3000
Cement Weighing Capacity	kg	600
Water Weighing Capacity	Litre	350
Addivites Weighing Capacity	Litre	25
Agregate Bin
Agregate Compartment	Adet	4
Compartment Capacity	m³	10-15
Total	m³	40-60
Transfer Belts
Width	mm	800
Length	mm	11500
Motor Power	kW	15
Cement Screw Conveyor
Diameter	mm	219
Length	mm	10000
Motor Power	kW	11
Total	kW	75

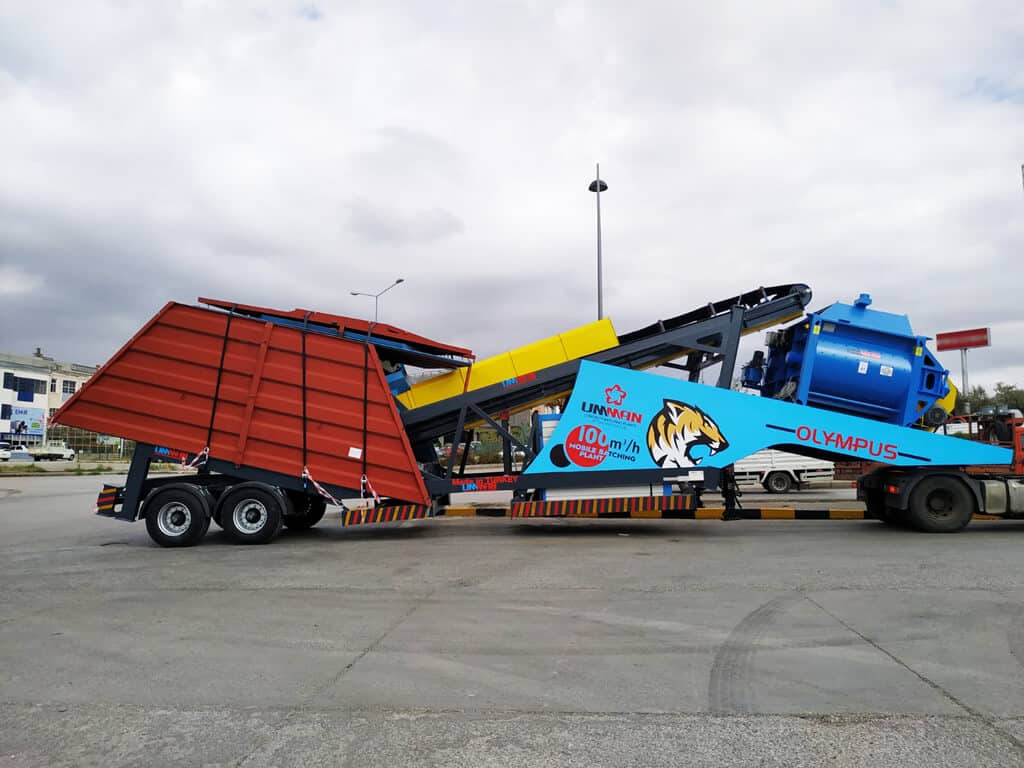

With its 3000/2000 l twin shaft mixer, it produces 2 m³ of concrete in each cycle and has a compacted concrete production capacity of 100 m³/h.
UMMAN UMC 100 mobile concrete plants designed on mono block chassis that can be towed and transported with axles and wheels offer the following advantages to their users:
– Quick and easy installation (1-2 days)
– Transport advantage (the main unit can be shipped with a single truck tow truck)
– Possibility of installation in restricted area thanks to its special design
– Quick and easy displacement
– Low basic cost (installation on a flat floor)
– Minimum concrete transportation cost and minimum impact on the environment with the possibility of installation at the site
– Easy maintenance and low operating costs
– High production performance with optimized operation

2 m³ TWİN Shaft Mixer

Combining its experience with its quality, Umman Concrete Machine manufactures long-lasting, durable, 100% homogeneous and optional concrete types in concrete mixers.

Technıcıal Specıfıcatıons

SPECIFICATIONS	UNIT	VALUE
Plant Capacity	m³/h	100
Mixer Specifications
MixerCapacity	m³/h	2
DryFillingCapacity	Litre	3000
CompactedConcrete	Litre	2000
Motor Power	kW	74
Weighing Hopper Capacitys
Agregate Weighing Capacity	kg	6000
Cement Weighing Capacity	kg	1200
Water Weighing Capacity	Litre	700
Addivites Weighing Capacity	Litre	25
Agregate Bin
Agregate Compartment	Adet	4
Compartment Capacity	m³	15-20
Total	m³	60-80
Transfer Belts
Width	mm	1000
Length	mm	11500
Motor Power	kW	18,5
Cement Screw Conveyor
Diameter	mm	273
Length	mm	11500
Motor Power	kW	15
Total	kW	140

Equipped with a 3 m3 twin shaft mixer, the UMC120 Mobile Concrete Plant is an ideal option for high-capacity serial concrete and ready-mixed concrete production. It is a preferred model for the sale of active concrete. It offers easy and short installation time with its ergonomic and modular design.

3 m³ TWİN Shaft Mixer

Combining its experience with its quality, Umman Concrete Machine manufactures long-lasting, durable, 100% homogeneous and optional concrete types in concrete mixers.

Technıcıal Specıfıcatıons

SPECIFICATIONS	UNIT	VALUE
Plant Capacity	m³/h	120
Mixer Specifications
MixerCapacity	m³/h	3
DryFillingCapacity	Litre	4500
CompactedConcrete	Litre	3000
Motor Power	kW	110
Weighing Hopper Capacitys
Agregate Weighing Capacity	kg	7000
Cement Weighing Capacity	kg	1800
Water Weighing Capacity	Litre	1000
Addivites Weighing Capacity	Litre	50
Agregate Bin
Agregate Compartment	Adet	4
Compartment Capacity	m³	30
Total	m³	120
Transfer Belts
Width	mm	1000
Length	mm	14450
Motor Power	kW	22
Cement Screw Conveyor
Diameter	mm	273
Length	mm	11500
Motor Power	kW	15
Total	kW	175
